Cut to size clear laminated tempered safety glass

Specifications

Product: tempered laminated glass
Glass thickness: 4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm, 15+15mm
Interlayer: PVB, SGP
Glass size: custom size
Color: clear transparent
Applications: railing, partition, canopy, window, door, curtain wall etc.
Processing: edges polishing, holes drilling, cut notches, safety corners etc.

Tempered Laminated Glass

Laminated glass is a safety glass that is created by sandwiching two or more sheets of standard annealed glass together around layers of transparent plastic laminate. If the outer layers of glass are broken, the laminate layer will hold the glass firmly in place, which makes for a much safer product. For this reason, laminated glass is frequently used in applications where there is a high risk of injury should a breakage occur.

Benefits of laminated glass

• Will not break as easily as a standard glass window
• When shattered, the broken glass stays in the frame instead of falling out
• Reduces noise transmission
• Provides security from forced entry
• Provides security from environmental threats such as tornadoes or hurricanes

Difference between PVB and SGP interlayer

1- Material: SGP is abbreviation of SentryGuard Plus Interlayer, crated by American brand Dupont. PVB is Polyvinyl butyral, many different suppliers can produce this material all around the world.

2- Thickness: The PVB thickness is 0.38mm, 0.76mm, 1.14mm, multiple of 0.38mm, the SGP thickness is 0.89mm, 1.52mm, 2.28mm, etc.

3- The main difference is “SGP” will stay standing when both sides are broken as compared to “PVB” it will fall down or break when both sides have become damaged. The SGP laminated glass is five times stronger and up to 100 times stiffer than PVB laminated glass. That’s why designers like to use SGP laminated glass for application which face to bad weather like ike storms, hurricane and cyclone, also for some place with war or need high security.

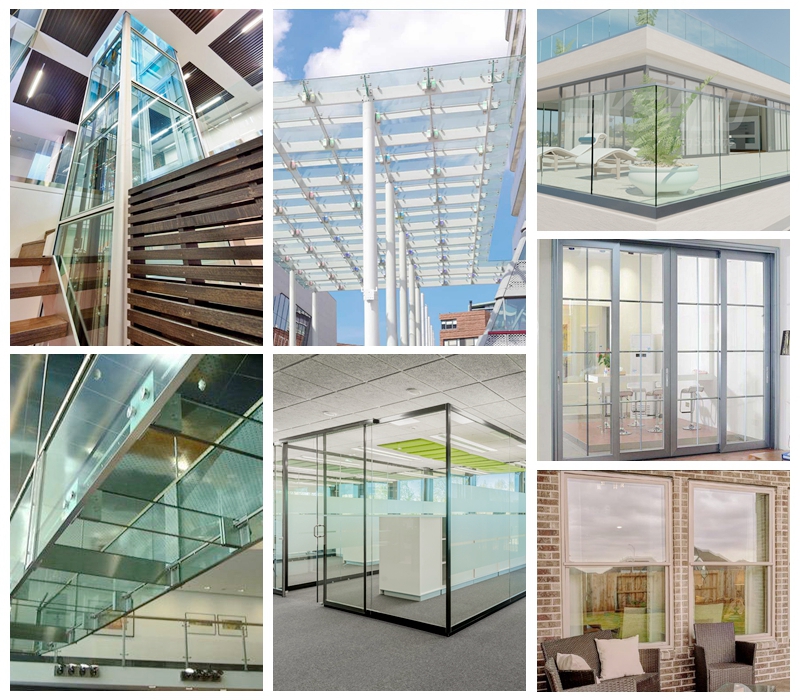

Applications of laminated glass

• Glass window and door
• Glass railing, balustrade, handrail and fence
• Glass roof, canopy, skylight and awning
• Glass partition wall
• Glass floor, walkway and bridge
• Glass curtian wall and facade
• Glass elevator and lift
