double glazed aluminum curtain wall construction system

Specifications

Product: glass curtain wall
Glass type: double glazed insulated glass
Glass color: custom color
Size: custom size
Glass thickness: two 4-12mm single glass with sapcer bar
Application: Commercial and residential building
Material: glass and hardware fittings

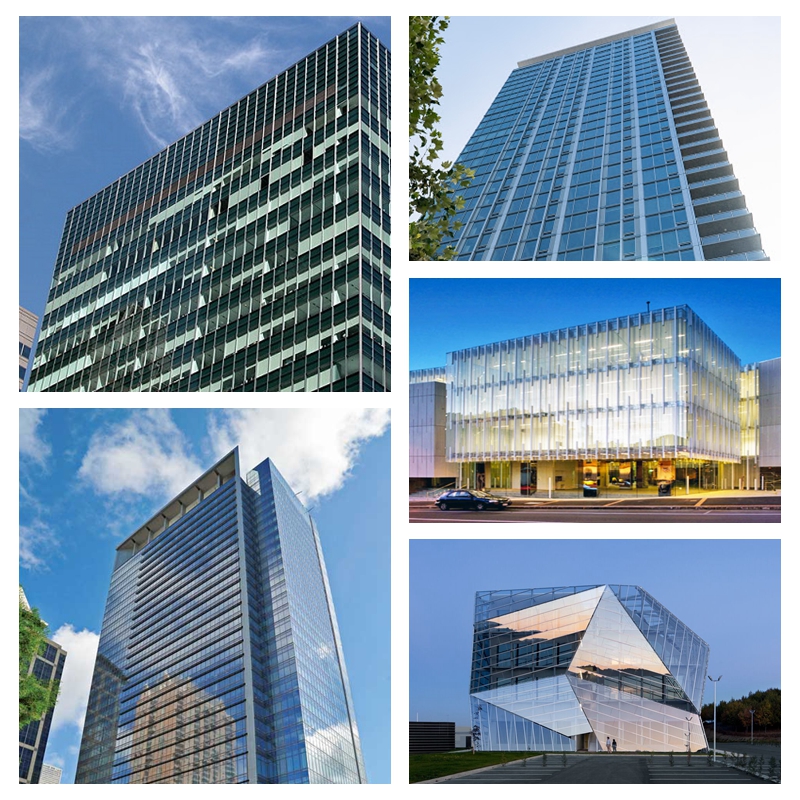

Glass Curtain Wall System

Curtain wall systems clad a building envelope with glass and aluminum to protect the interior from the elements and creates a safe and comfortable work environment for the building occupants. At connection points in the floors or columns of the building. A curtain wall is designed to resist air and water infiltration, as well as, sway created by wind and seismic forces, and its own weight.

Advantages

Keeping Out Air and Water

Curtain walls have the primary purpose of keeping air and water out of the building, essentially acting as both a buffer and an insulator. Buildings that have curtain walls will be easier (and more affordable) to maintain, and will last longer in general, as they have this additional protective shield build in.

Reducing Building Sway
The curtain wall is able to even out any stress on the building, by dispersing kinetic force throughout the entire frame and structure. Overall, this creates a building that is more likely to withstand high winds. A reduction in building sway make the building more comfortable to inhabitants.

Slowing the Spread of Fire
Curtain walls are additionally able to slow the spread of fire between floors, by acting as a barrier and preventing the fire from easily transferring across the surface of the building. This can be especially important in taller buildings, where the fire would otherwise quickly be able to spread upwards.

Thermal Efficiency
As another layer of material across the building, curtain walls are able to stabilize the temperature within and cut down on the operating costs of the building itself. Additional glazing can reduce UV light, which will keep items within the building from fading or degrading quickly.

Appearance and Attractiveness
A curtain wall gives a clean, sophisticated, and unique appearance, which is now associated with contemporary design. In many areas, curtain walls are the only type of wall that would be seen against the city skyline.

Types of Glass Curtain Wall

Stick Curtain Wall System: This type of curtain wall system, the components are assembled piece by piece on the structure of the building. This system is mainly used for low- rise buildings or in small regions. This is due to the fact that for reaching higher elevations it is important to have exterior access. This system promises flexibility as it gives space for onsite adjustments. Though it has the advantage of low shipping costs, the labor and time consumption should not be underestimated as tend to run quite high.

Unitized Curtain Wall System: In this type of curtain wall system, the parts are already assembled in the factory. The components are installed and brought as a single unit from the factory to the site. This negates the need for individual installation. The size of the unitized curtain walls is directly proportional to the floor to floor height of the structure. Popular in high-rise buildings, they don’t need external supports such as cranes or scaffolding. Only mini cranes or temporary hoist are needed. This system offers the benefits of quick construction and good quality as the components are manufactured in a factory setting. This type of curtain wall system tends to increase the shipping charges due to need for larger and better protection during transportation to the site.
